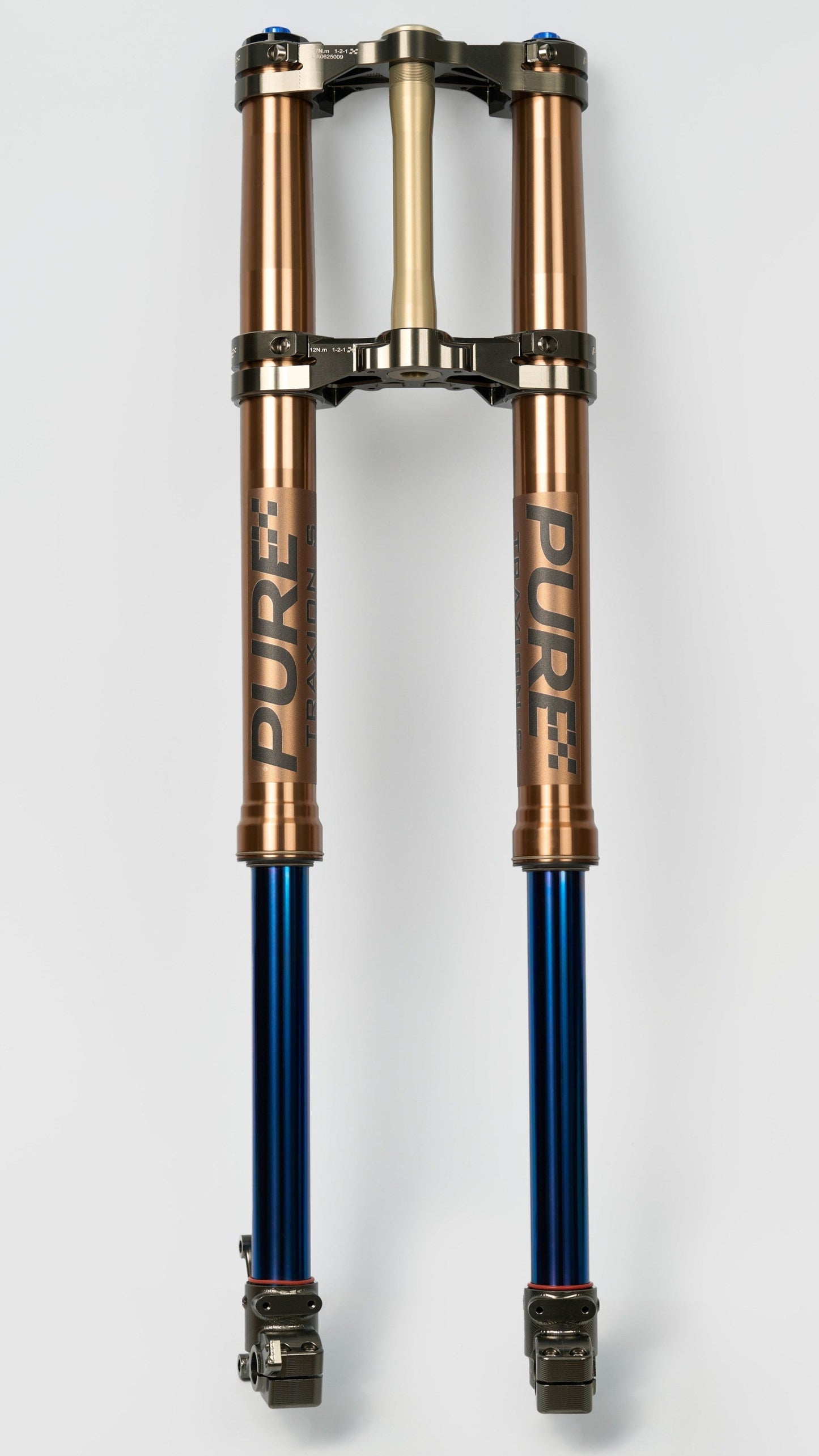

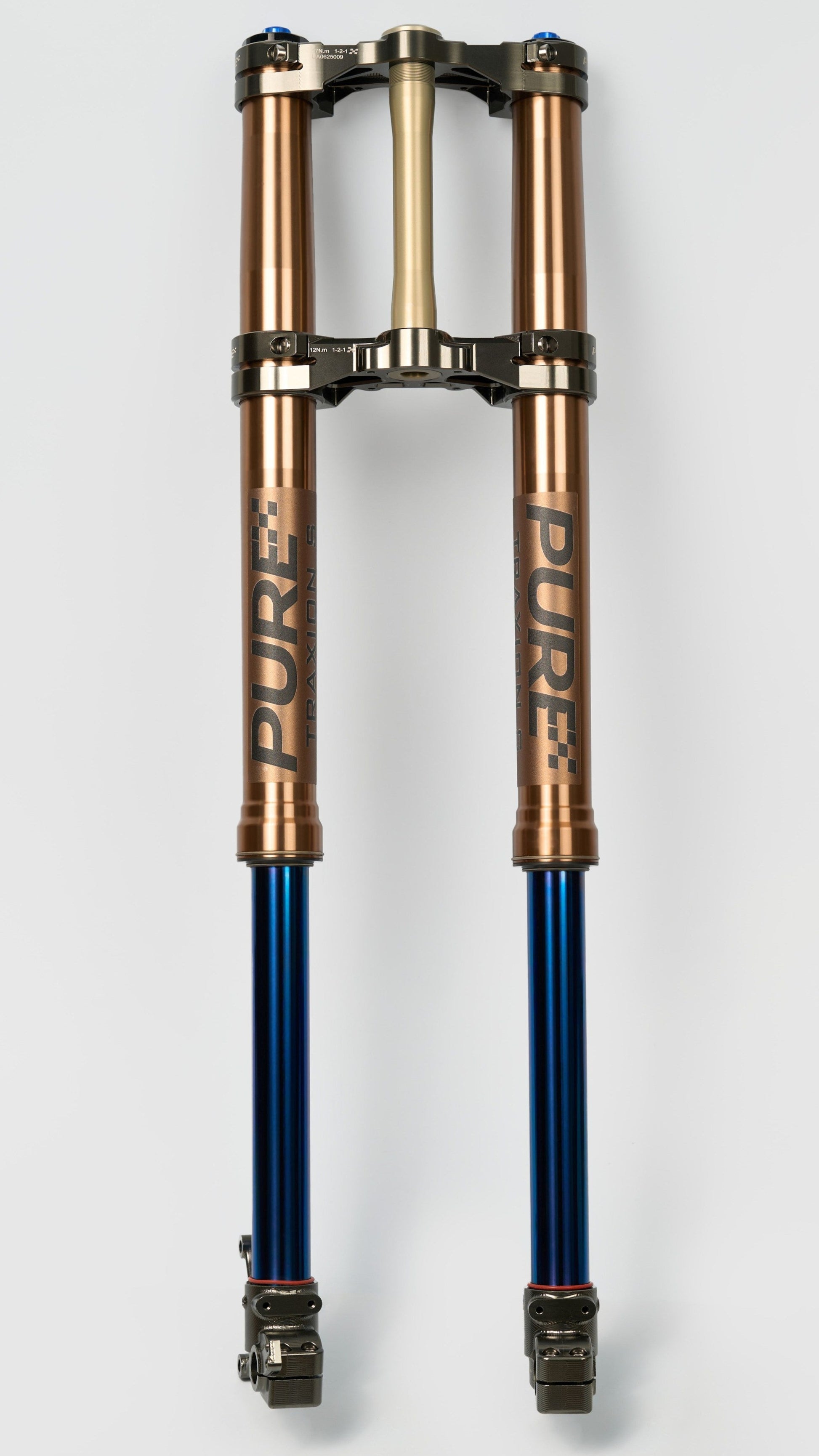

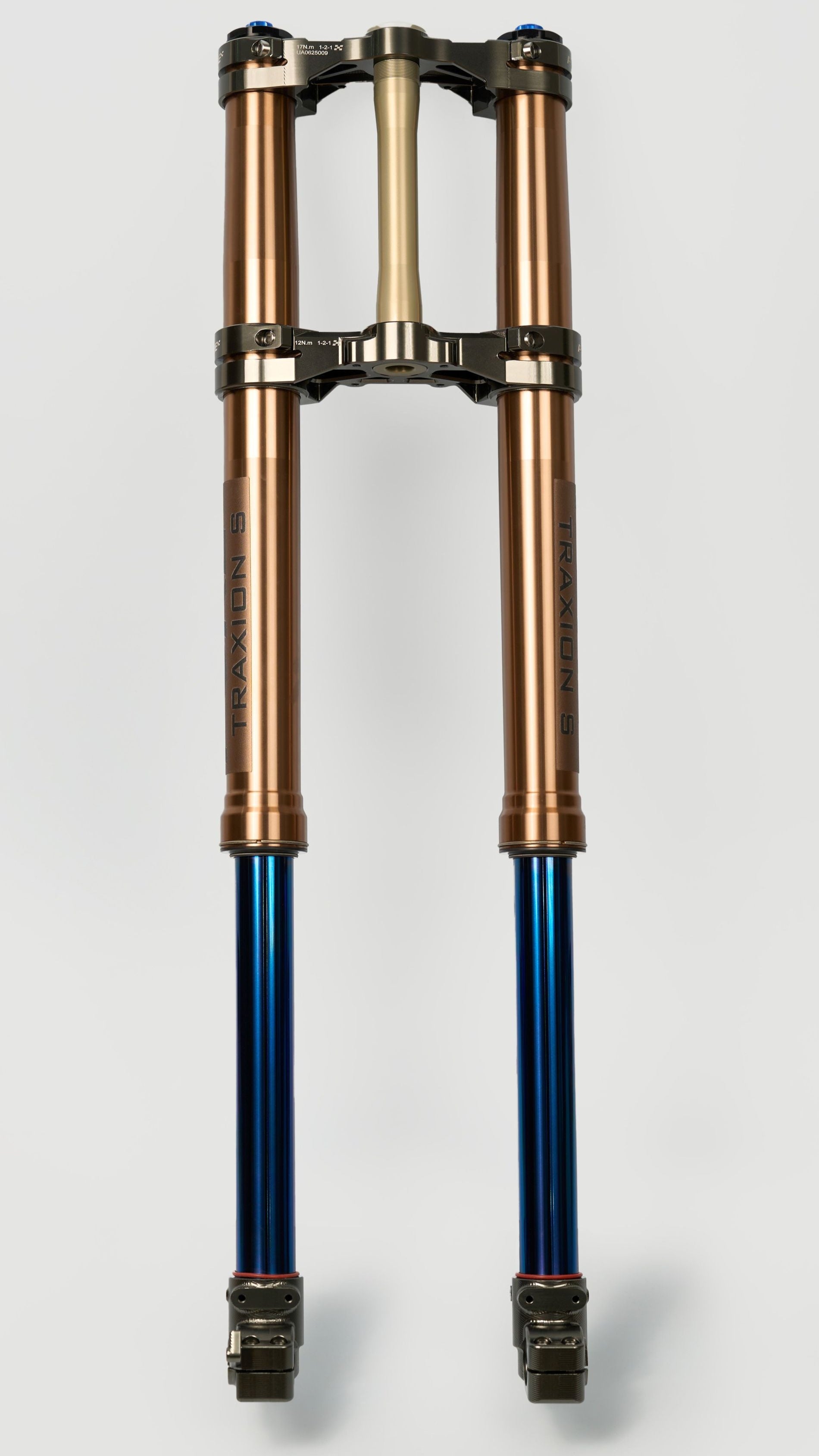

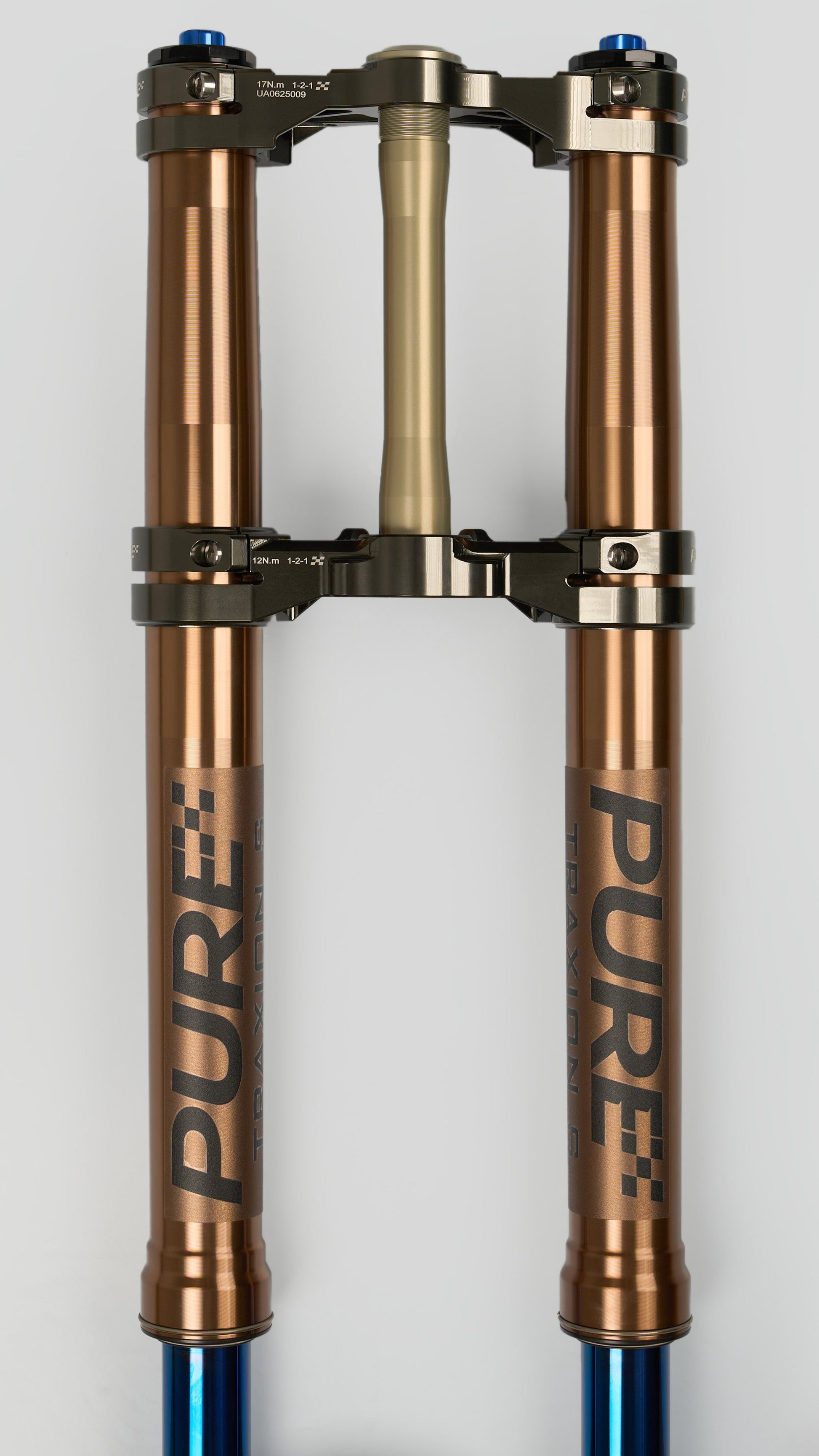

PURE Racing presents the TRAXION S fork designed for Surron Ultra Bee. This is our top of the range fork with the most advanced stanchion coating and valve system on the market. Patented and protected technology.
Developed through the dedicated efforts of German engineering. Collaborating with leading suspension manufacturing specialists, PURE Racing combines aerospace-grade materials with expert craftsmanship to deliver unmatched quality and performance.
Tuning and performance specifications:
- Internal preload adjustment on both legs.

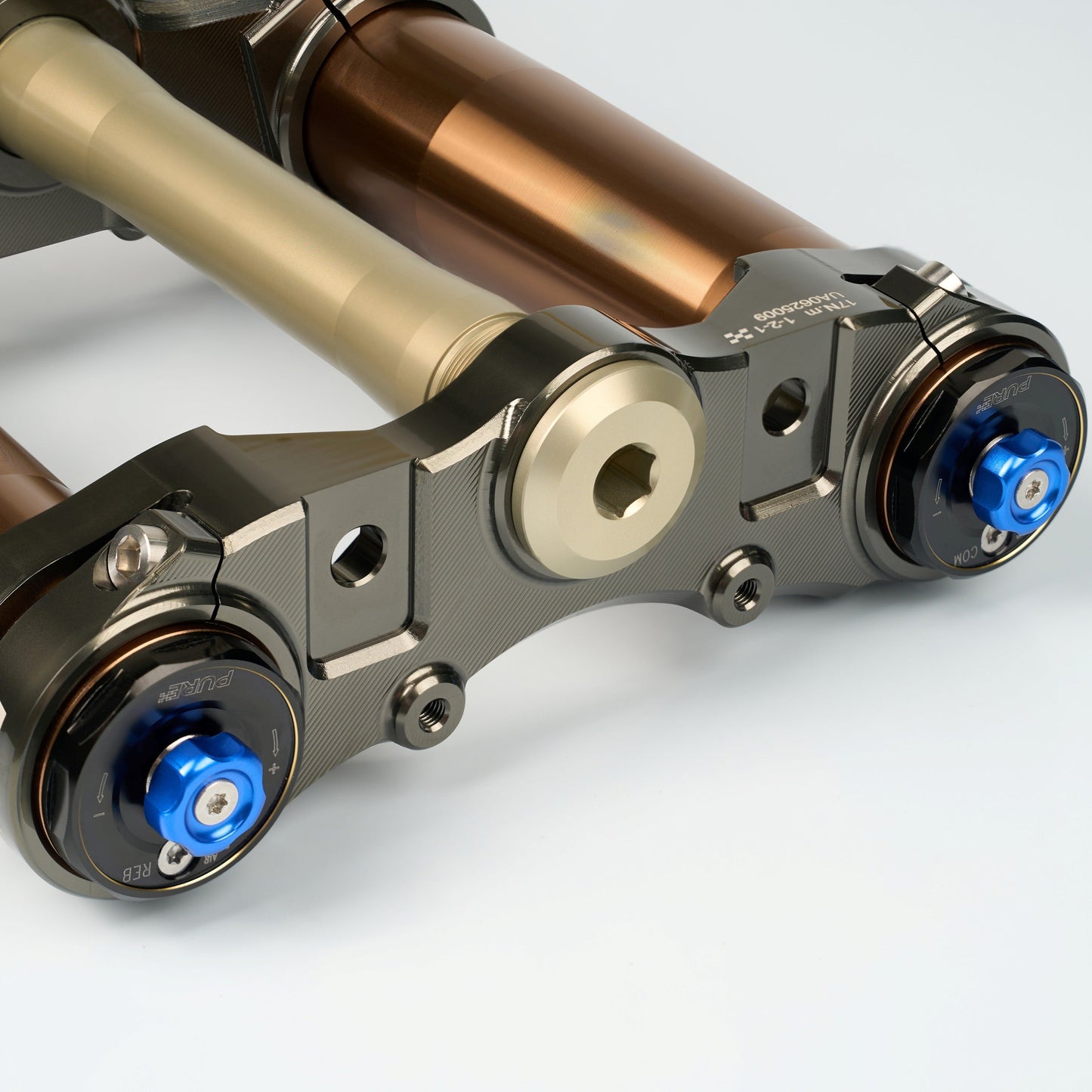

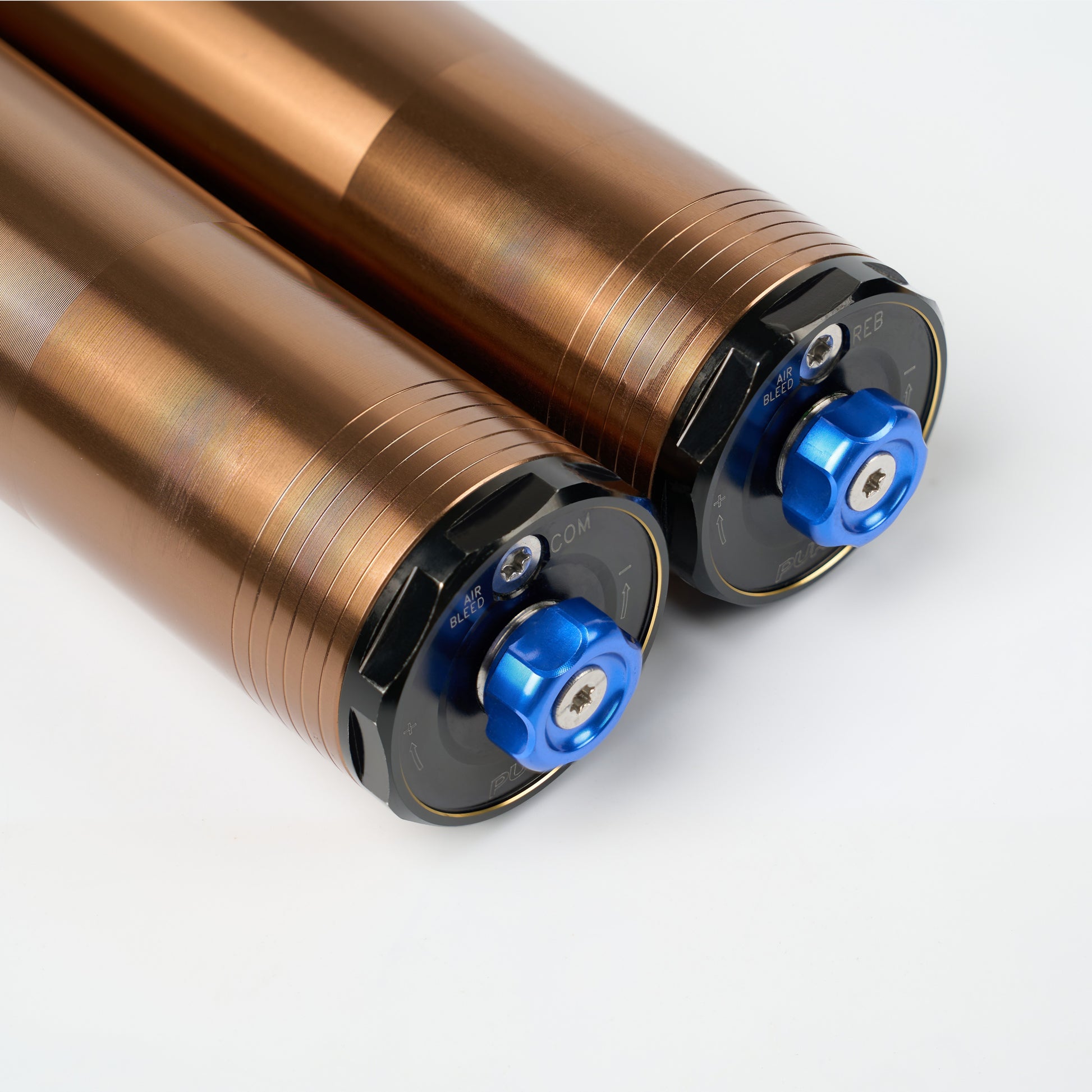

- External 24 click, compression and rebound adjustment.
- Hydraulic bottom out on both legs.
- 5 Spring weight tuning possibilities. (sold separately)
- 2 Valve tunes Trail & MX
Material and design specifications:
-

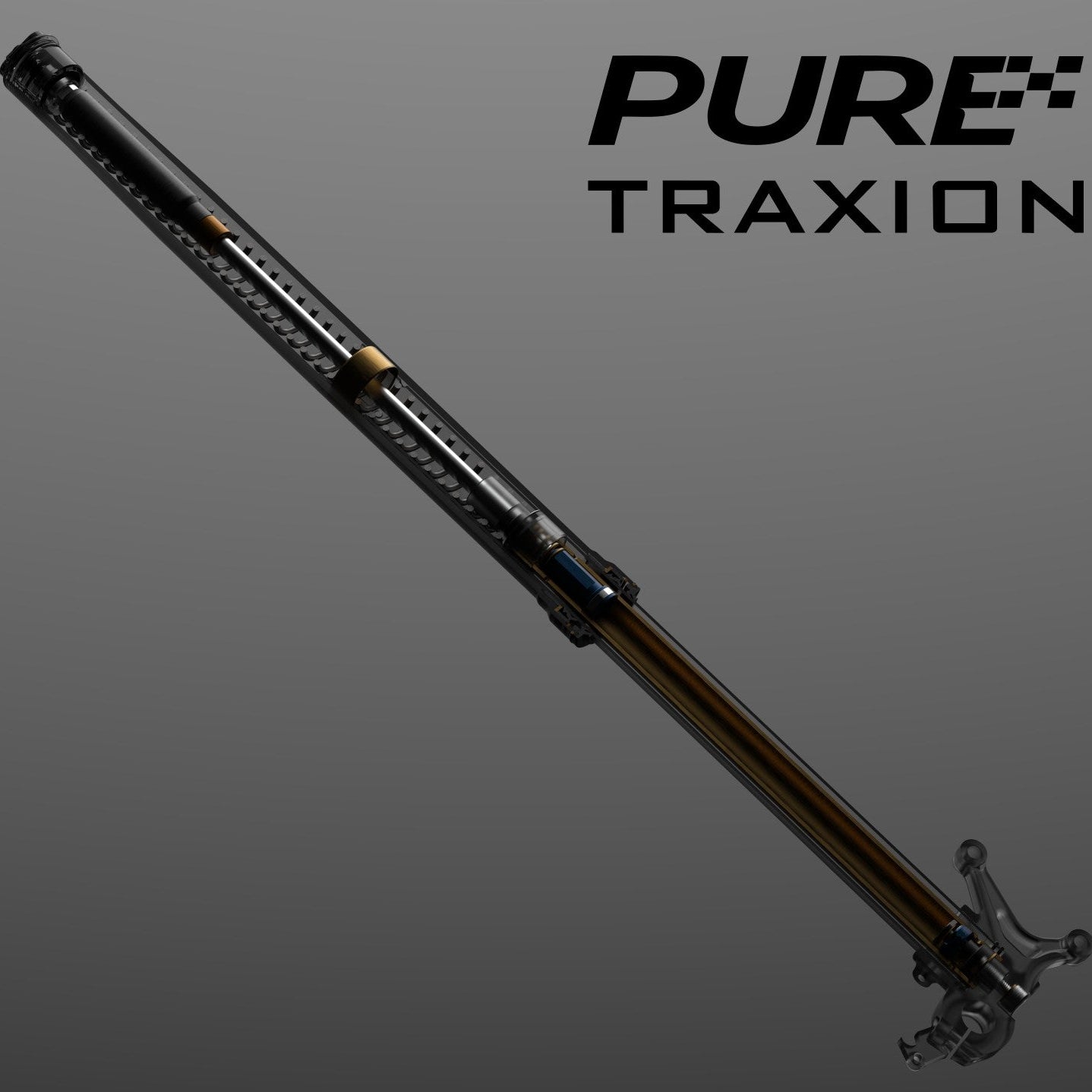

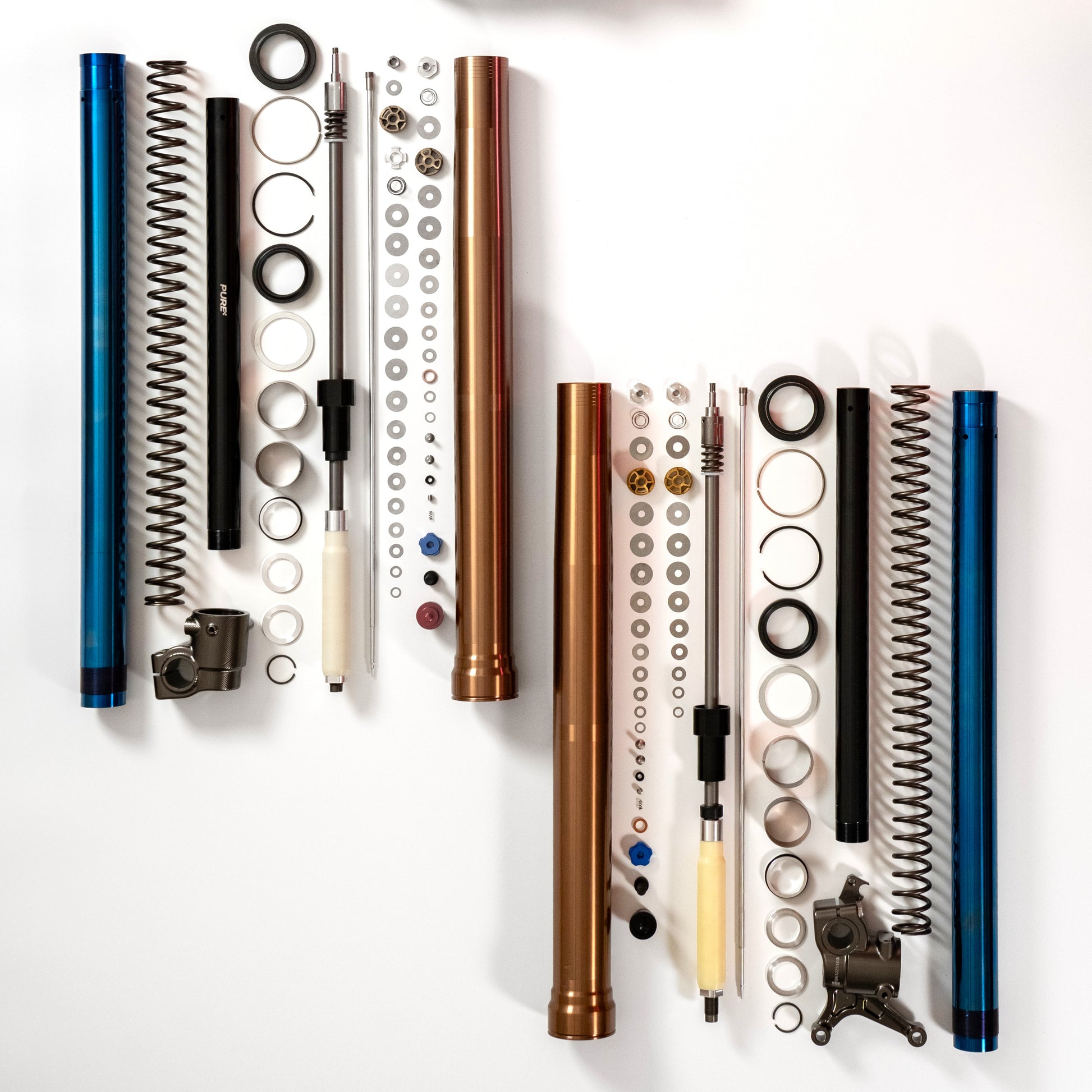

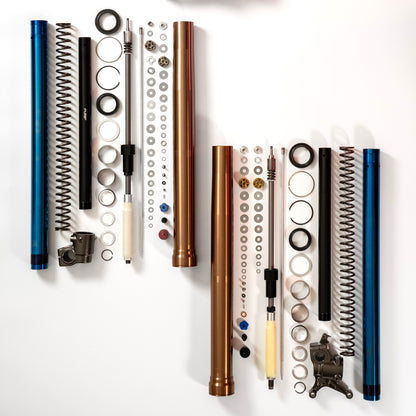

3D Printed Waffle Pistons located in upper and lower chambers of the internal cartridges, both for compression and rebound legs.
-

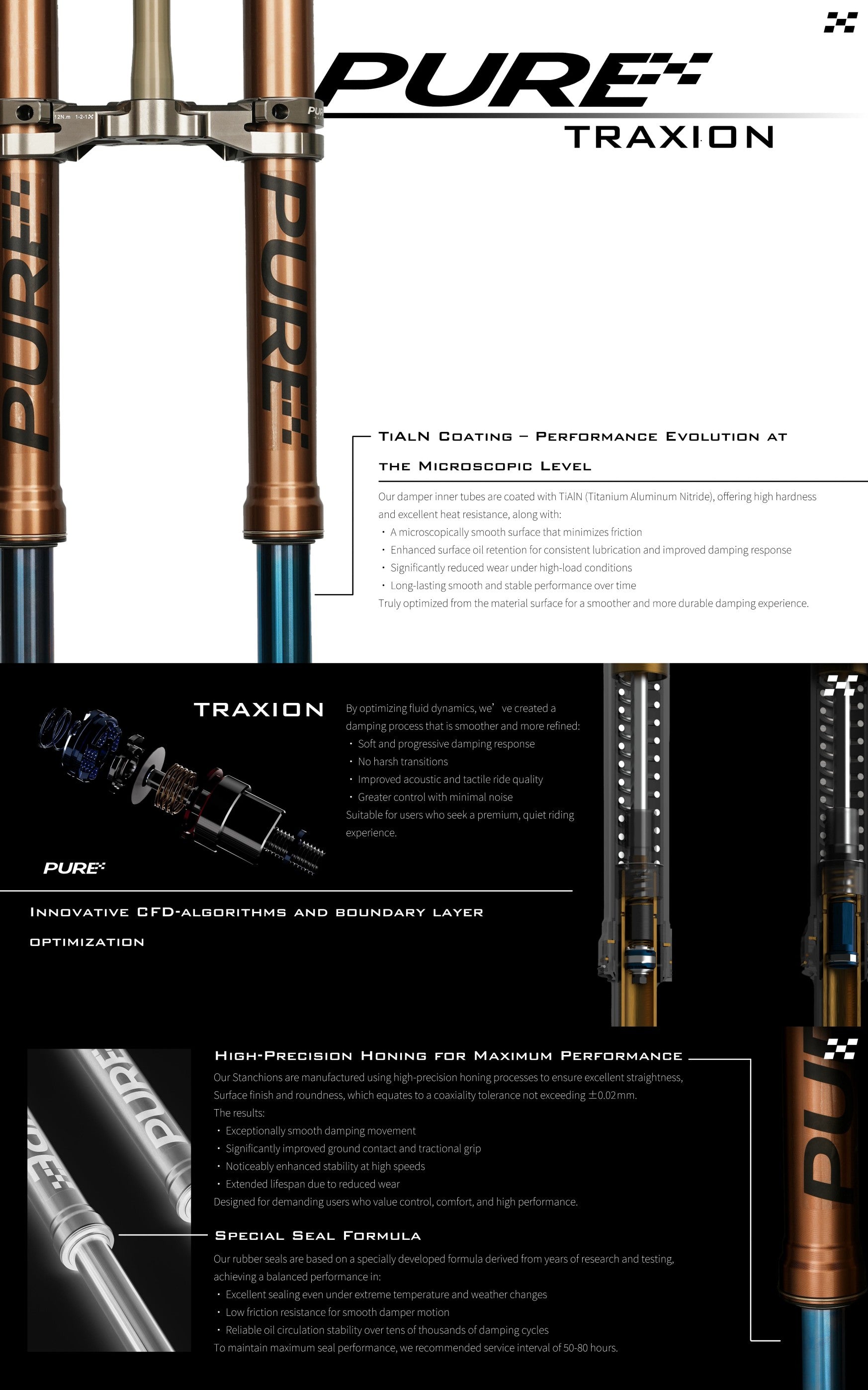

TiAlN (Titanium Aluminium Nitride) stanchion coating offers micro-level smoothness, superior lubrication, outstanding wear and scratch resistance, and excellent thermal stability.
-
Precision-honed inner cylinders with a ±0.01 mm tolerance, delivering exceptionally smooth damping and enhanced traction.
-

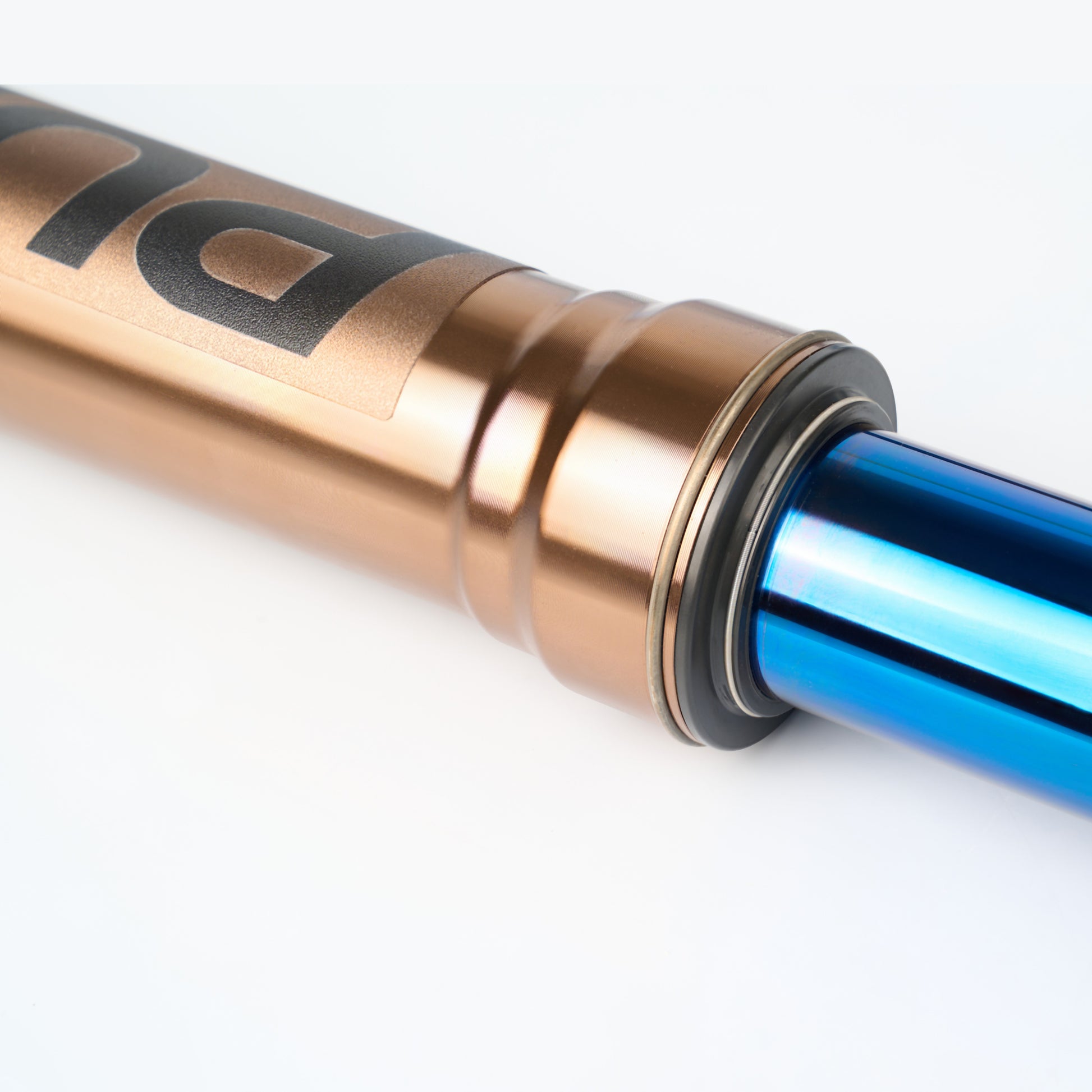

Custom-designed oil and dust seals strike an optimal balance between sealing efficiency and low friction, ensuring consistent oil flow over extensive use.
-
Advanced fluid dynamics provide a progressive, quiet, and controlled damping response.
-
The link plate, refined through FEM analysis, guarantees high rigidity, fatigue durability, and weight-optimized strength.
IN THE BOX:
Fork, CNC Crown, CNC Stem and lower bearing pre installed, headset spacers.
Not Included, Stanchion guards, Ultra Bee guards can be reused.
TECHNICAL SPECIFICATIONS:
NAME: TRAXION S

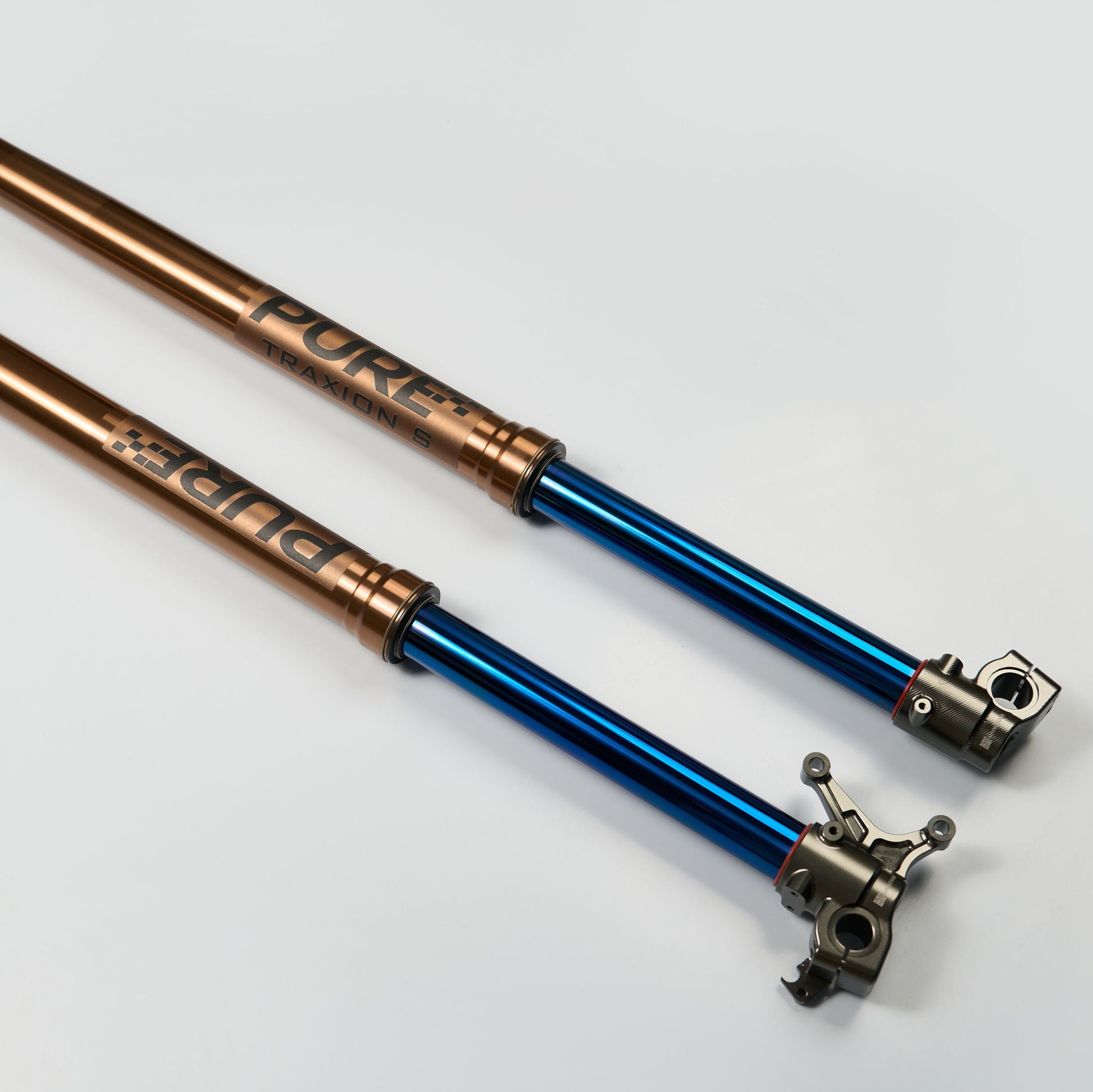

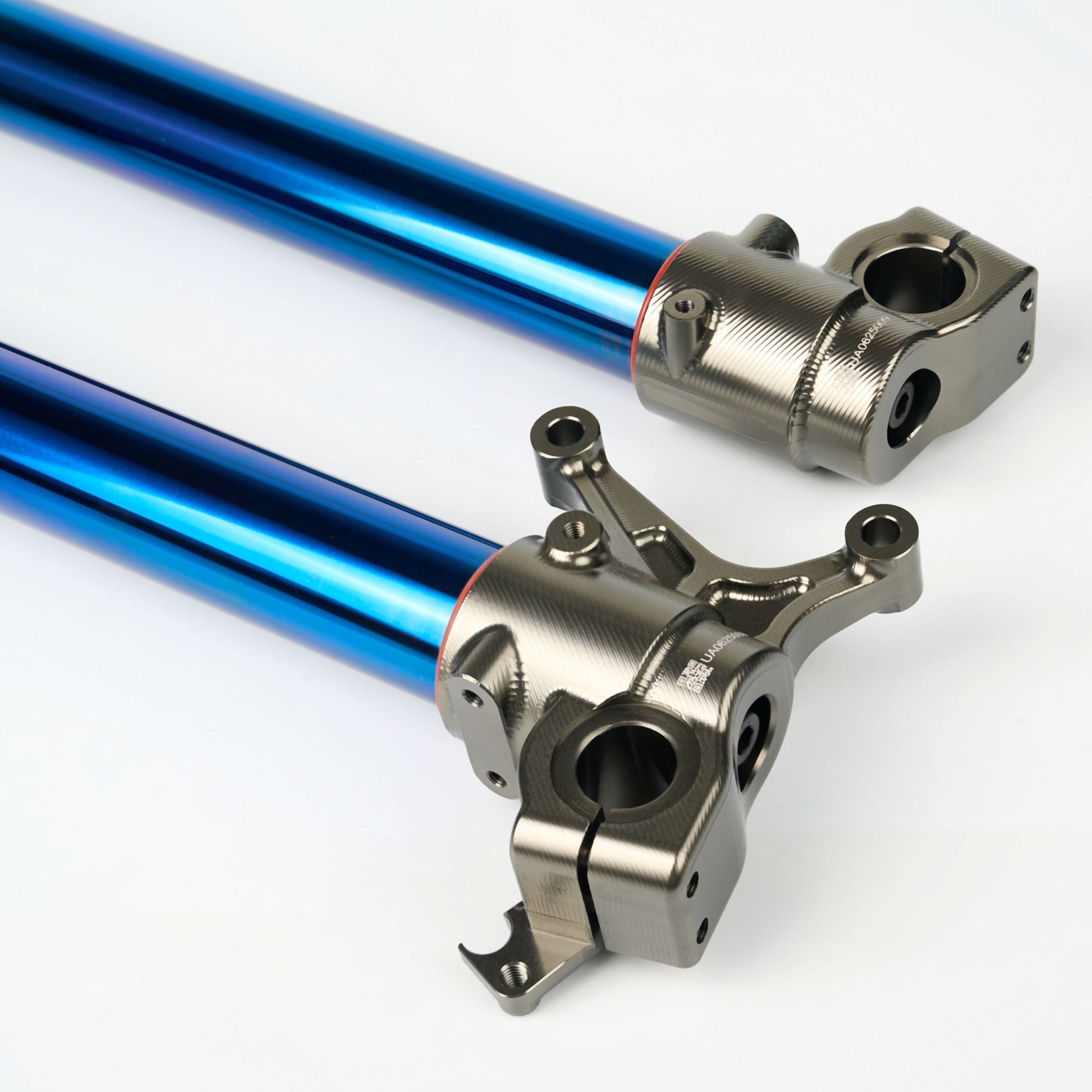

DROPOUTS: Surron Ultra Bee
TUBE DIAMETER: Inner 38mm/ Outer 50mm

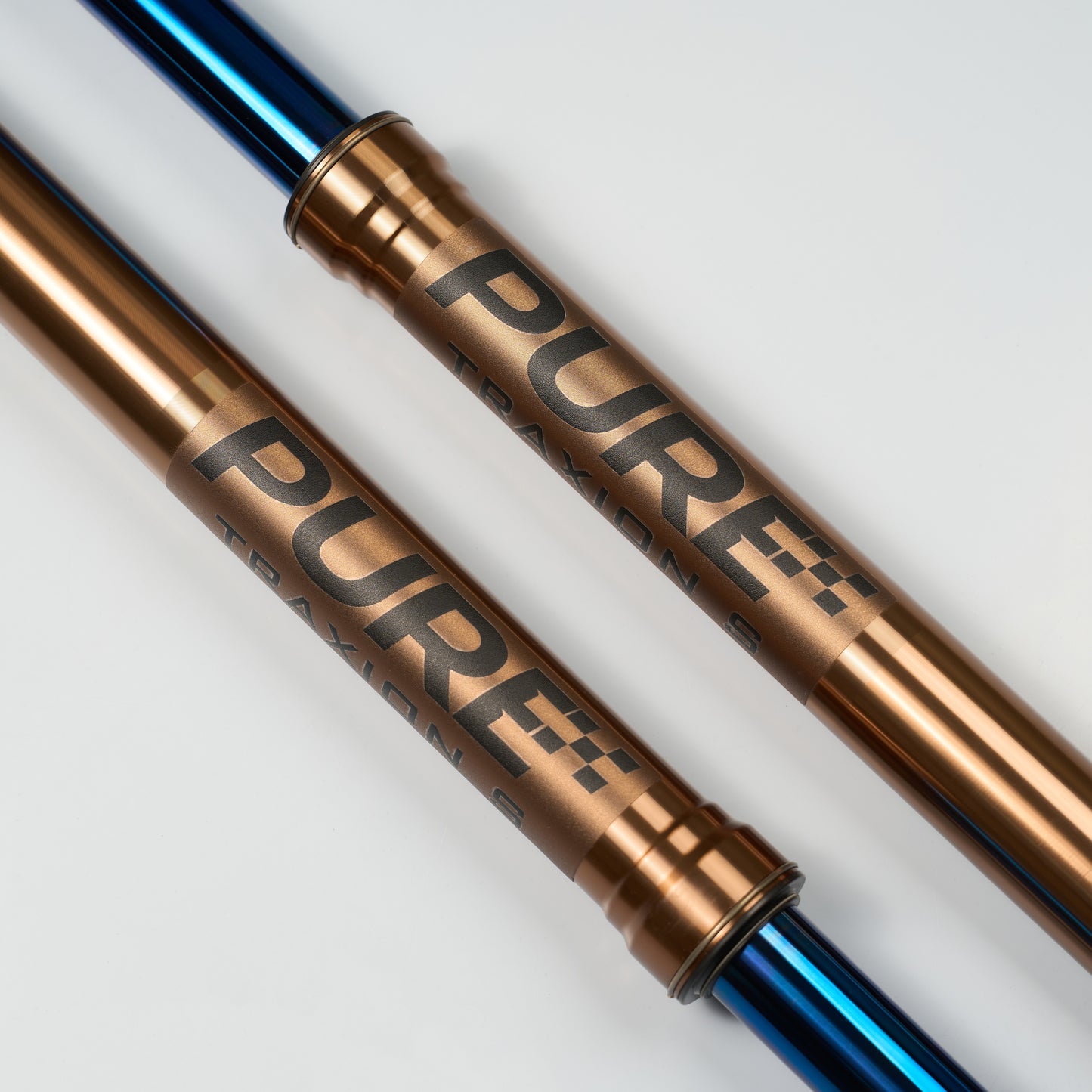

STANCHIONS: Blue TiAlN Titanium Aluminium Nitride coated
TRAVEL: 260mm / EXTENDED LENGTH: 850mm

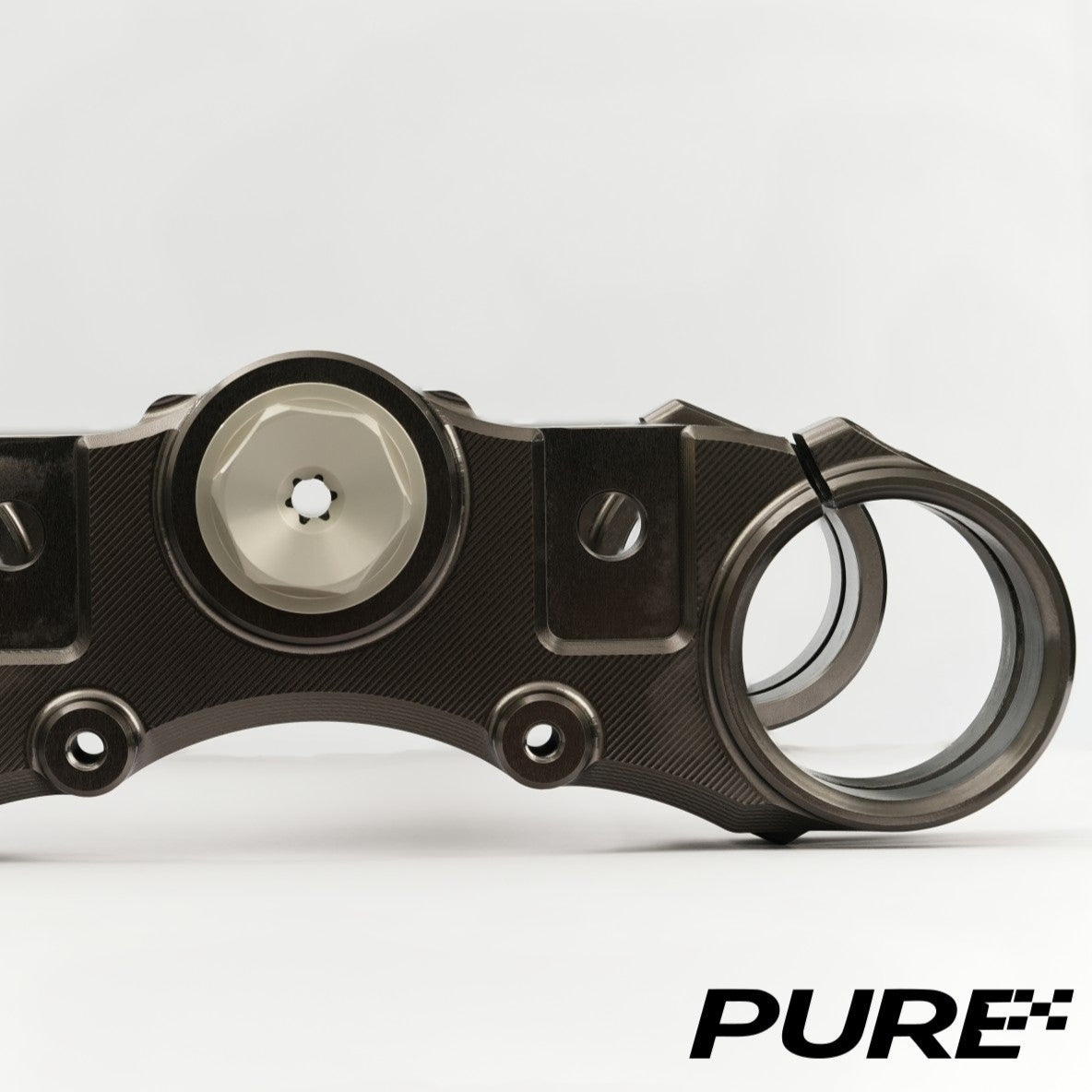

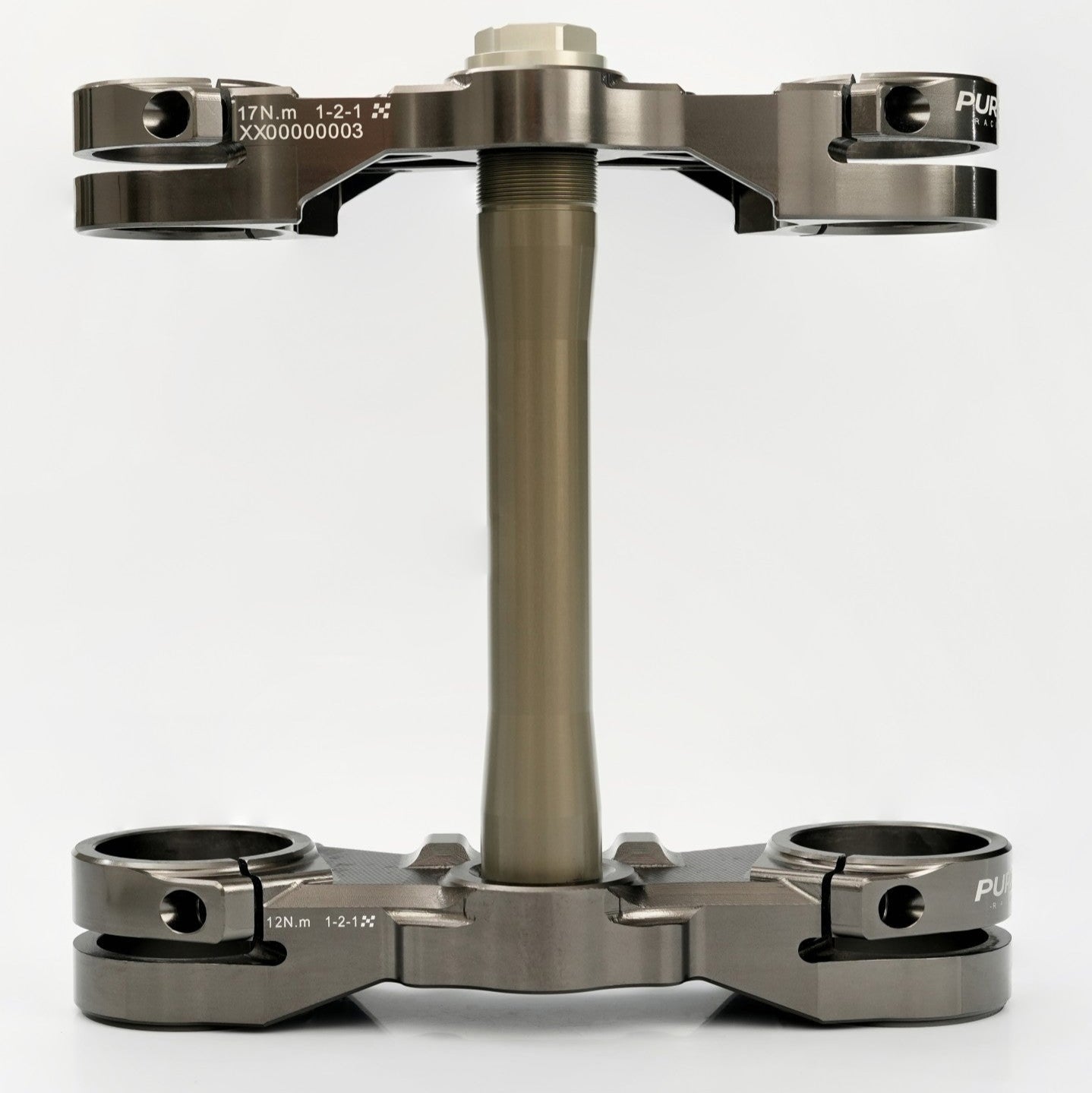

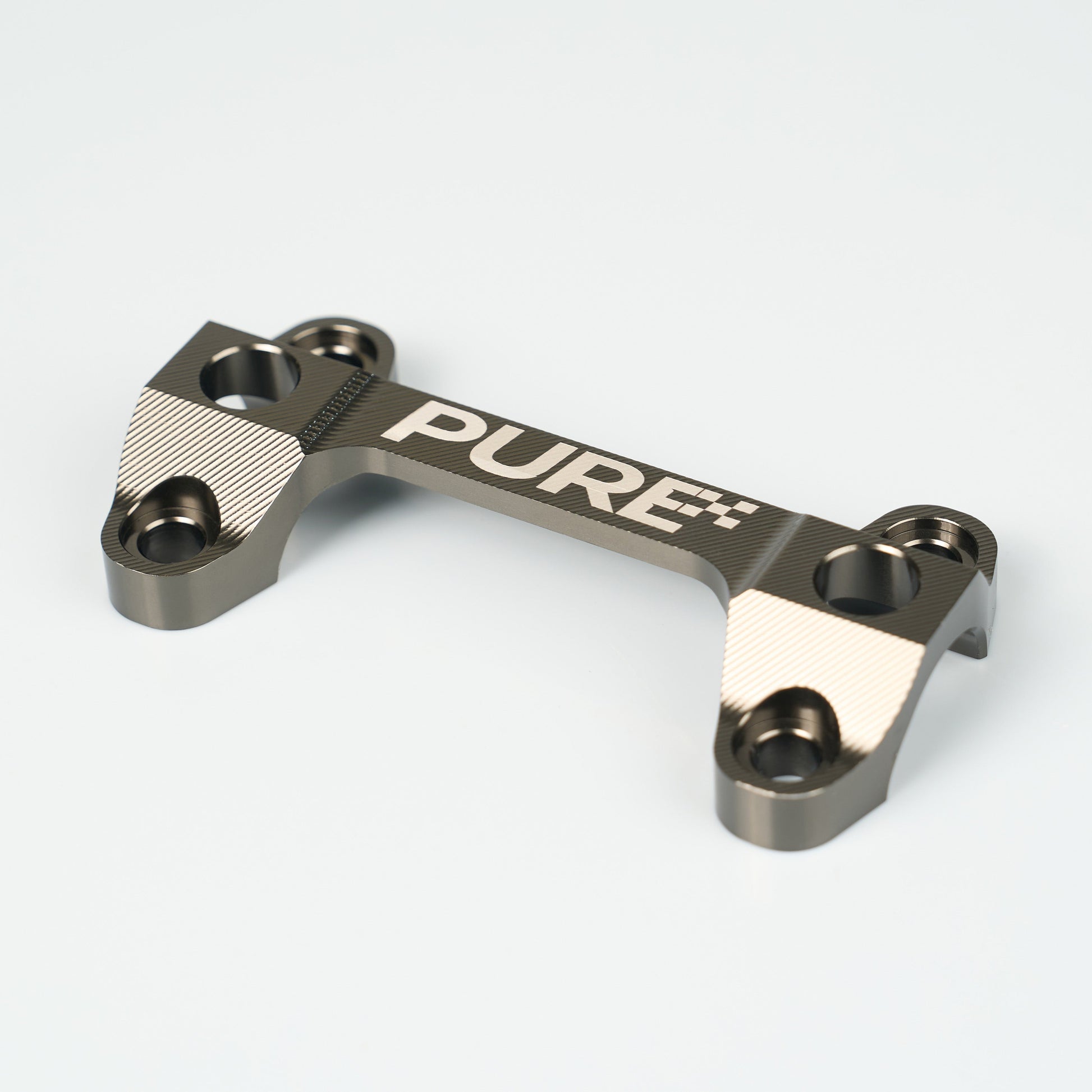

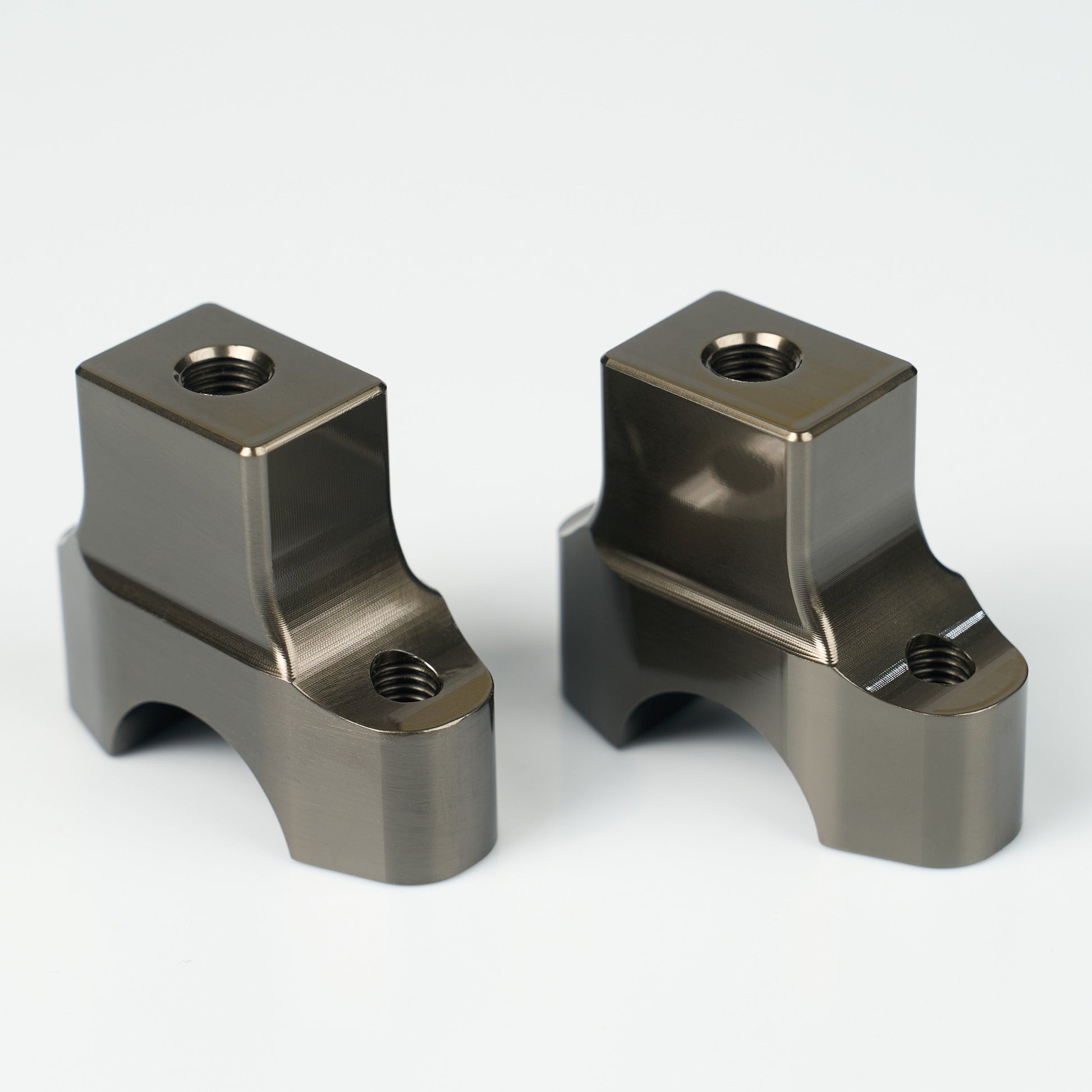

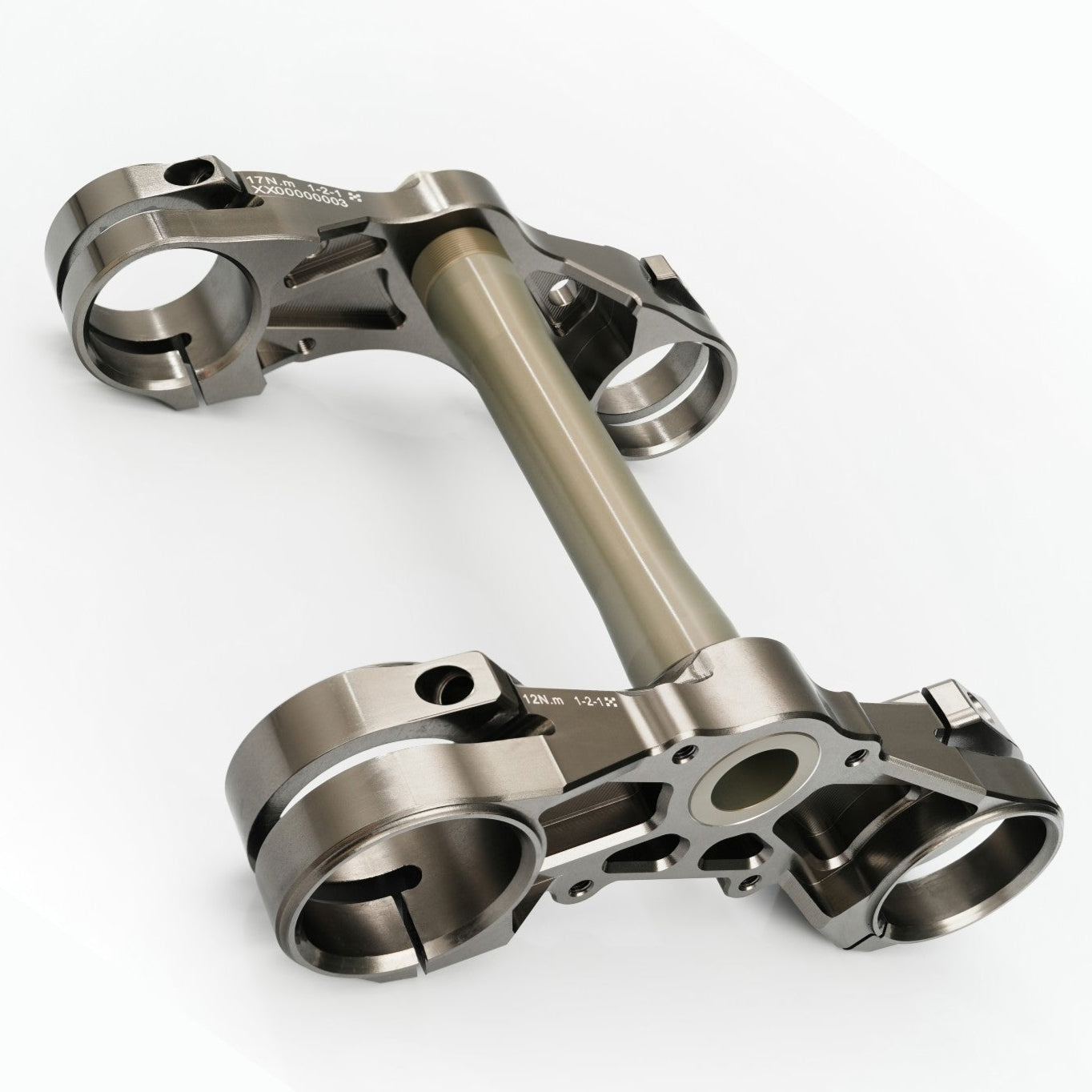

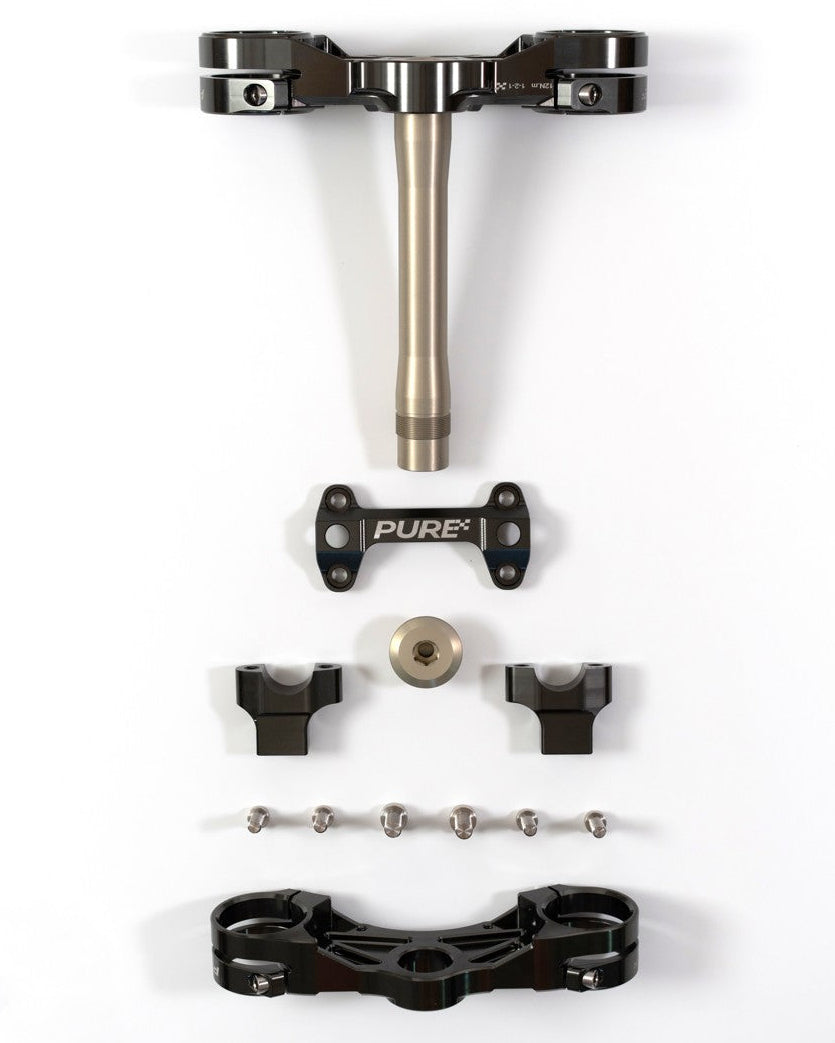

CROWN & STEM: Billet Aluminium, anodized coating

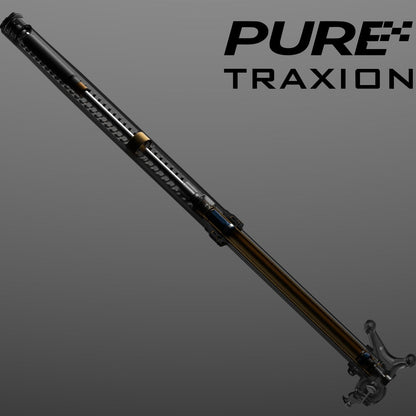

DAMPER: Dual sealed closed cartridges, dual-spring
RIDING STYLE OPTIONS: Light and Medium (TR) / Medium and Heavy (MX)
COMPRESSION & REBOUND DAMPING: 24-stage adjustable
WEIGHT: 9.8 Kg complete with oil, crown, handlebar clamps.
